• aluminium
• 700c
• clincher – tubeless ready
• machined side wall
• 25.5mm deep
• 24.5mm wide
• 21mm inner width
• 622mm BSD
• 589mm ERD
• 25-47mm optimal tyre width
• spoke tension between 110KgF to 130KgF
• 465g
Â

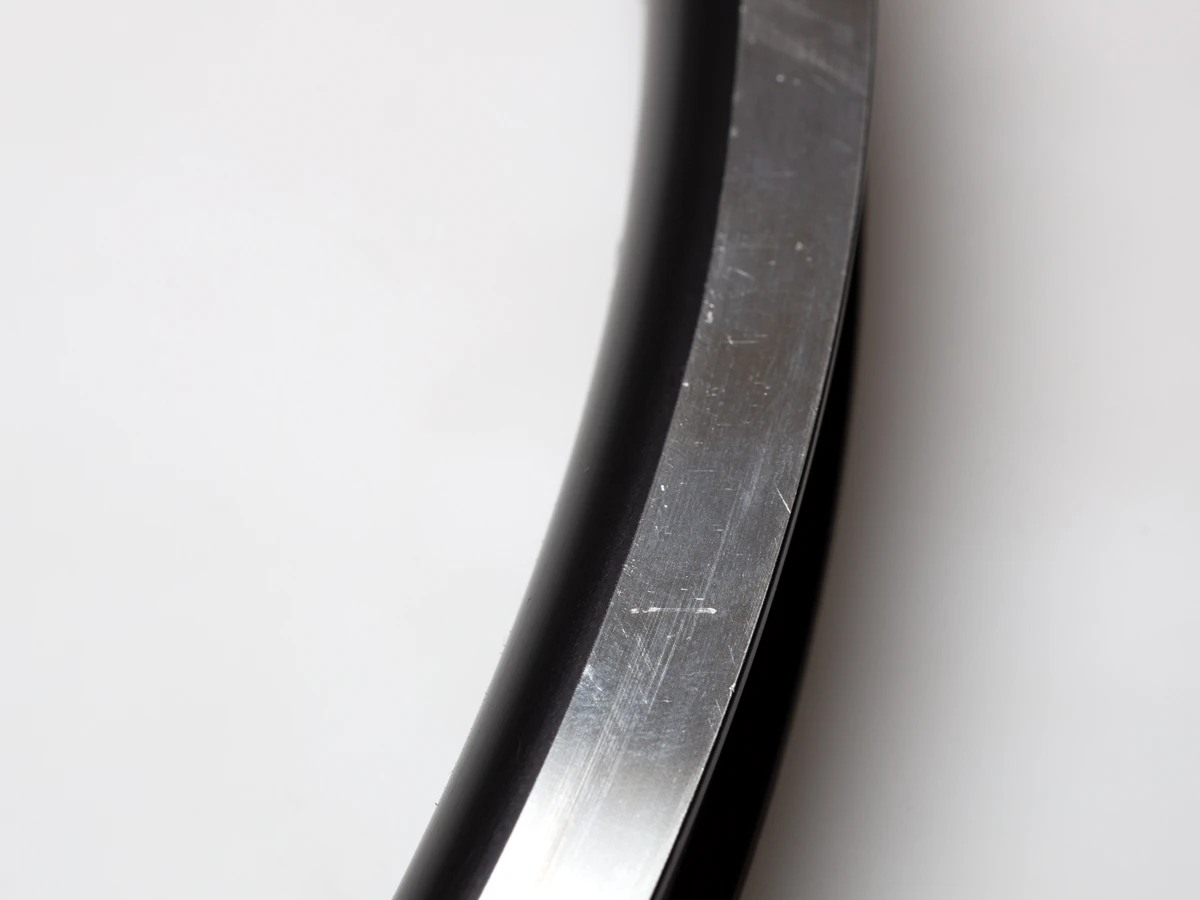

Please Note : This product is sold as pictured, and may have slight cosmetic imperfections from warehouse storage. These marks do not impede the function of the product, and will not be covered under warranty.Â
The Quill rim is 17.2% wider internally, 26.2% laterally stiffer, and 99.3% radially stiffer than the A23.

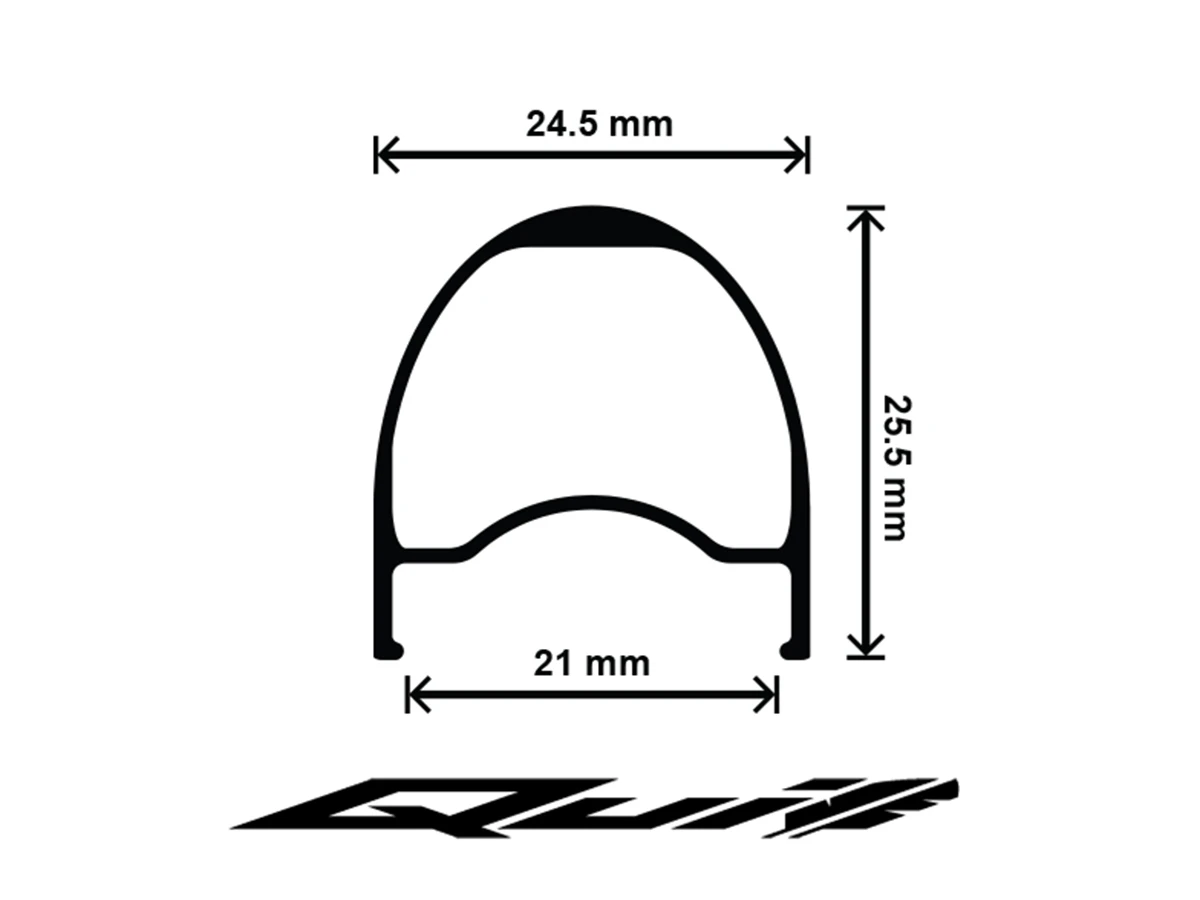

Featuring an outer width of 24.5mm and an internal width of 21.1mm, the Quill’s voluminous width provides riders with substantial lateral stiffness even in lower spoke counts and increased ride quality and control. The 25.5mm depth, provides an aero profile giving it significant performance and durability gains over previous rim brake models.
The Quill can easily be set up tubeless with the use of 21mm wide Velotape. Veloplugs are not recommended on Quill rims.
